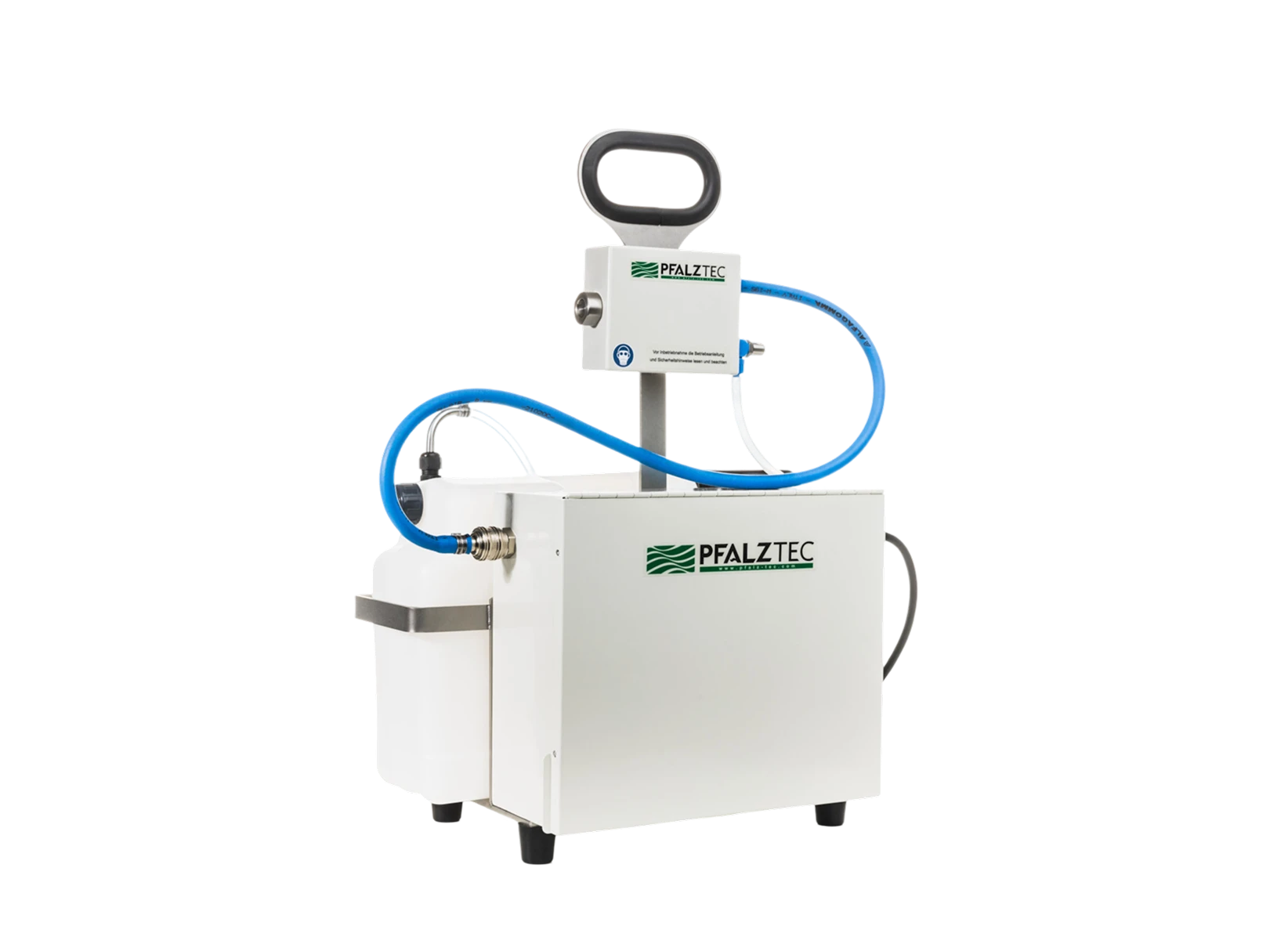

Automatic cold nebuliser with level sensor
AUTOMATIC W03 B10
Item no.
N80100603
AUTOMATIC W03 B10
Item no.
N80100603
Further information and Product information
- Uniform aerosol distribution
- High efficiency
- Durable and low-maintenance
| Specification | Value |
|---|---|
Room coverage | up to 300 m³ |
Nozzle type | W03 |
Droplet spectrum | Ø 6-16 µm |
Medium throughput (depending on dosing nozzle) | 3 bar: |
6 bar: | |
Reach | up to 15 m (3 bar) or up to 18 m (6 bar) |
Max. Compressed air flow rate | 100-200 l/min |
Max. Compressed air pressure | 8 bar |
Compressed air connection | Plug nipple NW 7.2 mm |
Centre container capacity | 10 l |
Switch off | Automatic by means of level sensor (adjustable) |
Manual switching | 1 nozzle - Off - 2 nozzles |
Degree of protection | IP45 |
Supply voltage | 230 V AC, 50 Hz |
Power consumption | approx. 200 W |
Electrical connection | 3 m mains cable with Schuko plug CEE 7/7 |
Dimensions (L×W×H) | 48 × 27 × 60 cm |
Weight (empty) | approx. 8.3 kg |
Housing | Powder-coated stainless steel, ergonomic carrying handle |
Miscellaneous Areas of application.
Get in touch with us for your individual project!
The PfalzTec AUTOMATIC W03 B10 is a powerful cold nebuliser for unattended use. The integrated fill level sensor ensures automatic switch-off, while manual switching between one or two nozzles offers maximum flexibility. With a 10-litre medium container, the W03 nozzle and a range of up to 18 m, the device is ideal for rooms up to 300 m³. The robust stainless steel housing ensures long-lasting, professional use.
