Double-headed cold nebuliser For very large room volumes
PROFI DK W06 B60
Item no.
N8015940
PROFI DK W06 B60
Item no.
N8015940
Further information and Product information
- Uniform aerosol distribution
- High efficiency
- Durable and low-maintenance
| Specification | Value |
|---|---|
Room coverage | up to 3,000 m³ |
Nozzle type | 2 × W06 |
Droplet spectrum | Ø 8-18 µm |
Medium throughput (depending on dosing nozzle) | 3 bar: up to 10 l/h (dry fog) up to 24 l/h (medium fog) up to 48 l/h (wet fog) |
6 bar: up to 20 l/h (dry fog) up to 48 l/h (medium fog) up to 96 l/h (wet fog) | |
Reach | up to 90 m (3 bar) or up to 100 m (6 bar) |
Max. Compressed air flow rate | 400-1,600 l/min |
Max. Compressed air pressure | 8 bar |
Compressed air connection | GEKA coupling ½" with shut-off ball valve |
Centre container capacity | 60 l |
Manual switching | 1 nozzle - 2 nozzles |
Dimensions (L×W×H) | 79 × 53 × 56 cm |
Weight (empty) | approx. 11 kg |
Housing | Powder-coated stainless steel |
Miscellaneous Areas of application.
Get in touch with us for your individual project!

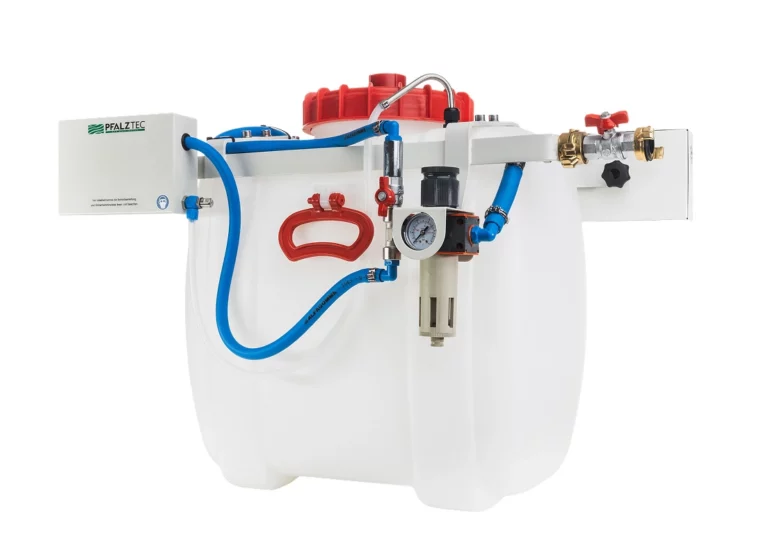

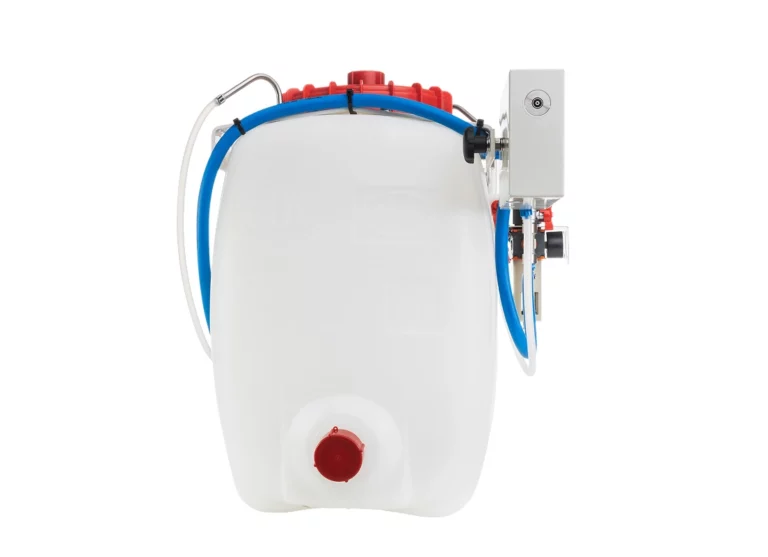

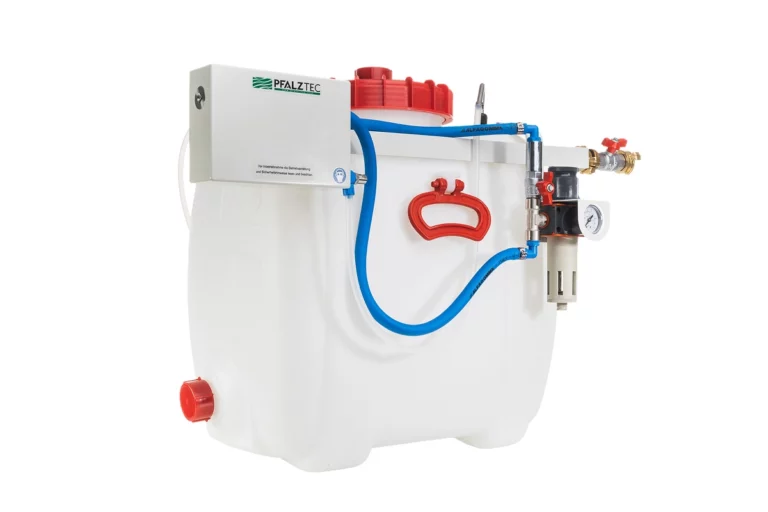

The PfalzTec PROFI DK W06 B60 is a powerful twin-head cold nebuliser for use in extremely large rooms up to 3,000 m³. With two W06 nozzles, a 60-litre medium container and a variable medium flow rate, the device achieves impressive ranges of up to 100 m. Manual switching between one or two nozzles enables flexible adjustments, while the sturdy stainless steel frame ensures long-lasting and professional use.
