More compact Cold nebuliser with extended tank volume
MINI B10
Item no.
N80240220
MINI B10
Item no.
N80240220
Further information and Product information
- Uniform aerosol distribution
- High efficiency
- Durable and low-maintenance
| Specification | Value |
|---|---|
Room coverage | up to 300 m³ |
Nozzle type | W03, swivelling |
Droplet spectrum | Ø 6-16 µm |
Medium throughput (depending on dosing nozzle and orifice insert) | 3 bar: 1-2 l/h (dry fog) up to 5 l/h (medium fog) up to 8 l/h (wet fog) |
6 bar: 2-3 l/h (dry fog) to 8 l/h (medium fog) to 12 l/h (wet fog) | |
Reach | approx. 8-15 m (installations can reduce the range) |
Max. Compressed air flow rate | 100-200 l/min |
Max. Compressed air pressure | 8 bar |
Compressed air connection | Plug nipple NW 7.2 mm |
Centre container capacity | 10 l |
Dimensions (L×W×H) | 30 × 24 × 32 cm |
Weight (empty) | 1.3 kg |
Miscellaneous Areas of application.
Get in touch with us for your individual project!

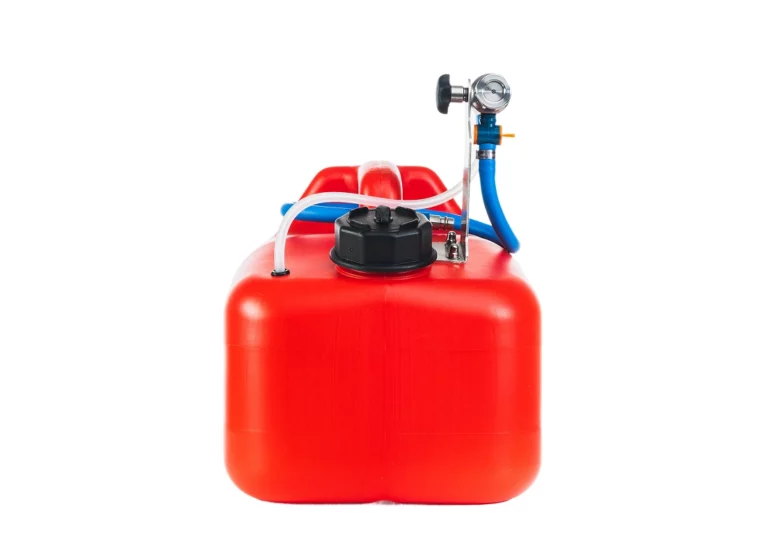

The PfalzTec MINI B10 is a handy cold nebuliser for professional applications in rooms up to 300 m³. With a 10-litre medium container, adjustable medium flow rate and a range of up to 18 m, the device is ideal for flexible use. Thanks to its compact design and low weight, it is particularly mobile and easy to handle.
