Automatic cold nebuliser for large rooms
AUTOMATIC W06 B20
Item no.
N80200603
AUTOMATIC W06 B20
Item no.
N80200603
Further information and Product information
- Uniform aerosol distribution
- High efficiency
- Durable and low-maintenance
| Specification | Value |
|---|---|
Room coverage | up to 1,000 m³ |
Nozzle type | W06 |
Droplet spectrum | Ø 8-18 µm |
Medium throughput (depending on dosing nozzle) | 3 bar: up to 5 l/h (dry fog) up to 12 l/h (medium fog) up to 24 l/h (wet fog) |
6 bar: up to 10 l/h (dry fog) up to 24 l/h (medium fog) up to 48 l/h (wet fog) | |
Reach | up to 45 m (3 bar) or up to 55 m (6 bar) |
Max. Compressed air flow rate | 400-800 l/min |
Max. Compressed air pressure | 8 bar |
Compressed air connection | Plug nipple NW 7.2 mm |
Centre container capacity | 20 l |
Switch off | Automatic by means of level sensor (adjustable) |
Degree of protection | IP45 |
Supply voltage | 230 V AC, 50 Hz |
Power consumption | approx. 200 W |
Electrical connection | 3 m mains cable with Schuko plug CEE 7/7 |
Dimensions (L×W×H) | 46 × 34 × 61 cm |
Weight (empty) | approx. 10.3 kg |
Housing | Powder-coated stainless steel, ergonomic carrying handle |
Miscellaneous Areas of application.
Get in touch with us for your individual project!

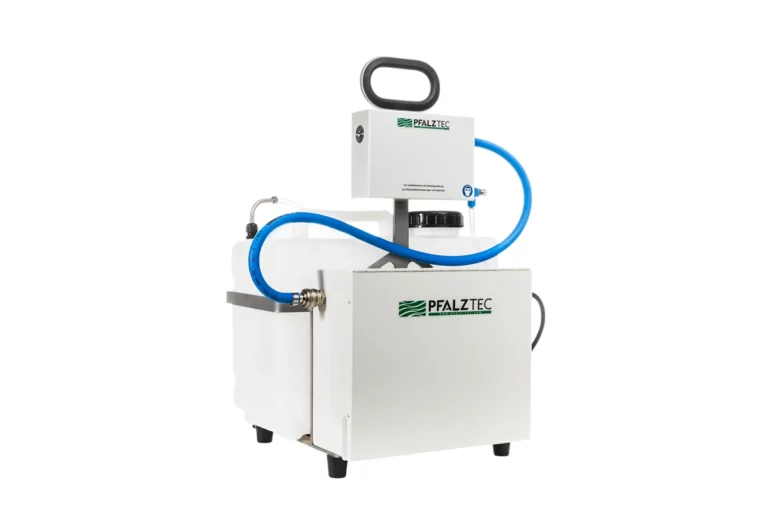

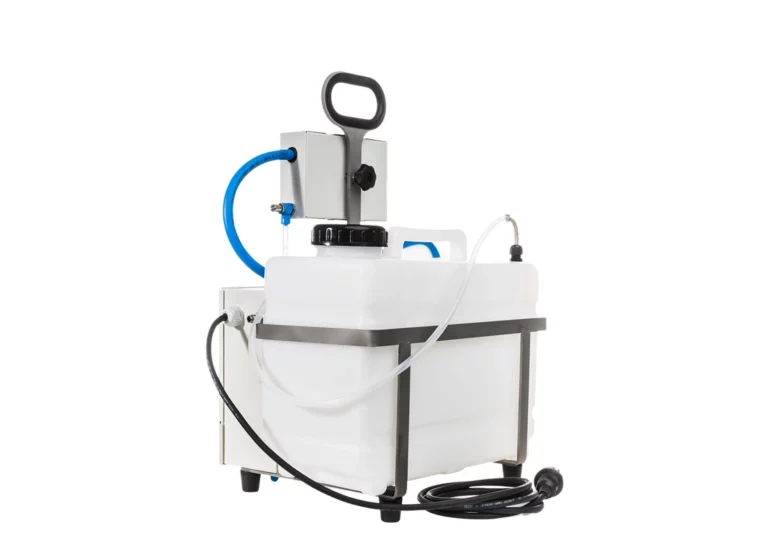

The PfalzTec AUTOMATIC W06 B20 is a powerful cold nebuliser for unattended applications in rooms up to 1,000 m³. With the W06 nozzle, a 20-litre medium container and automatic switch-off via a fill level sensor, the device achieves ranges of up to 55 m. The robust stainless steel construction and ergonomic carrying handle ensure easy handling and a long service life, even in continuous professional use.
