Automatic double-head cold nebuliser For very large room volumes
AUTOMATIC DK W06 B60
Item no.
N80161460
AUTOMATIC DK W06 B60
Item no.
N80161460
Further information and Product information
- Uniform aerosol distribution
- High efficiency
- Durable and low-maintenance
| Specification | Value |
|---|---|
Room coverage | up to 3,000 m³ |
Nozzle type | 2 × W06 |
Droplet spectrum | Ø 8-18 µm |
Medium throughput (depending on dosing nozzle) | 3 bar: up to 10 l/h (dry fog) up to 24 l/h (medium fog) up to 48 l/h (wet fog) |
6 bar: up to 20 l/h (dry fog) up to 48 l/h (medium fog) up to 96 l/h (wet fog) | |
Reach | up to 90 m (3 bar) or up to 100 m (6 bar) |
Max. Compressed air flow rate | 400-1,600 l/min |
Max. Compressed air pressure | 8 bar |
Compressed air connection | GEKA coupling ½" with shut-off ball valve |
Centre container capacity | 60 l |
Switch off | automatically by means of a level sensor in the dispensing valve |
Manual switching | 1 nozzle - 2 nozzles |
Degree of protection | IP45 |
Supply voltage | 230 V AC, 50 Hz |
Power consumption | approx. 200 W |
Electrical connection | 3 m mains cable with Schuko plug CEE 7/7 |
Dimensions (L×W×H) | 74 × 53 × 56 cm |
Weight (empty) | approx. 14.5 kg |
Housing | Powder-coated stainless steel, ergonomic carrying handle |
Miscellaneous Areas of application.
Get in touch with us for your individual project!

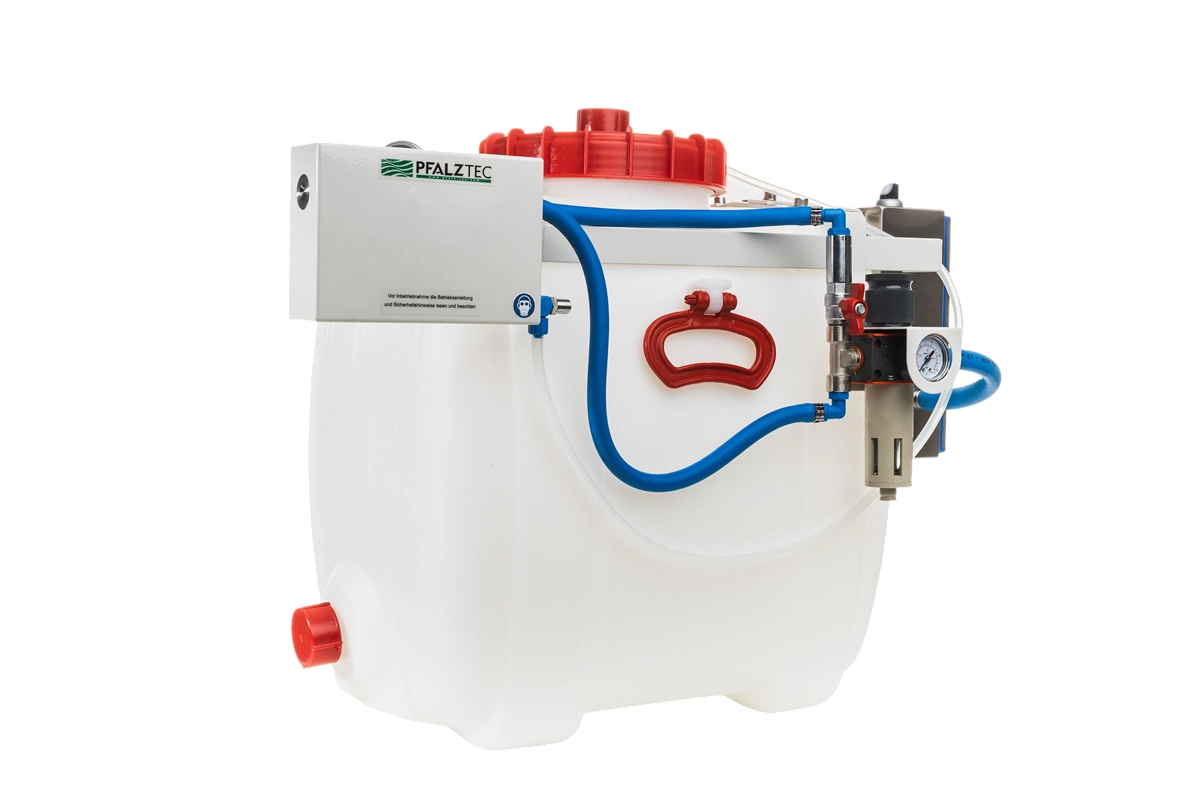

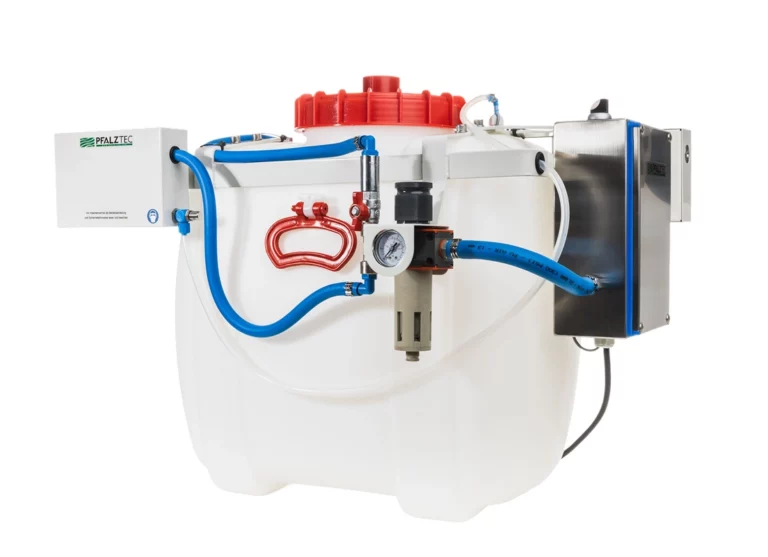

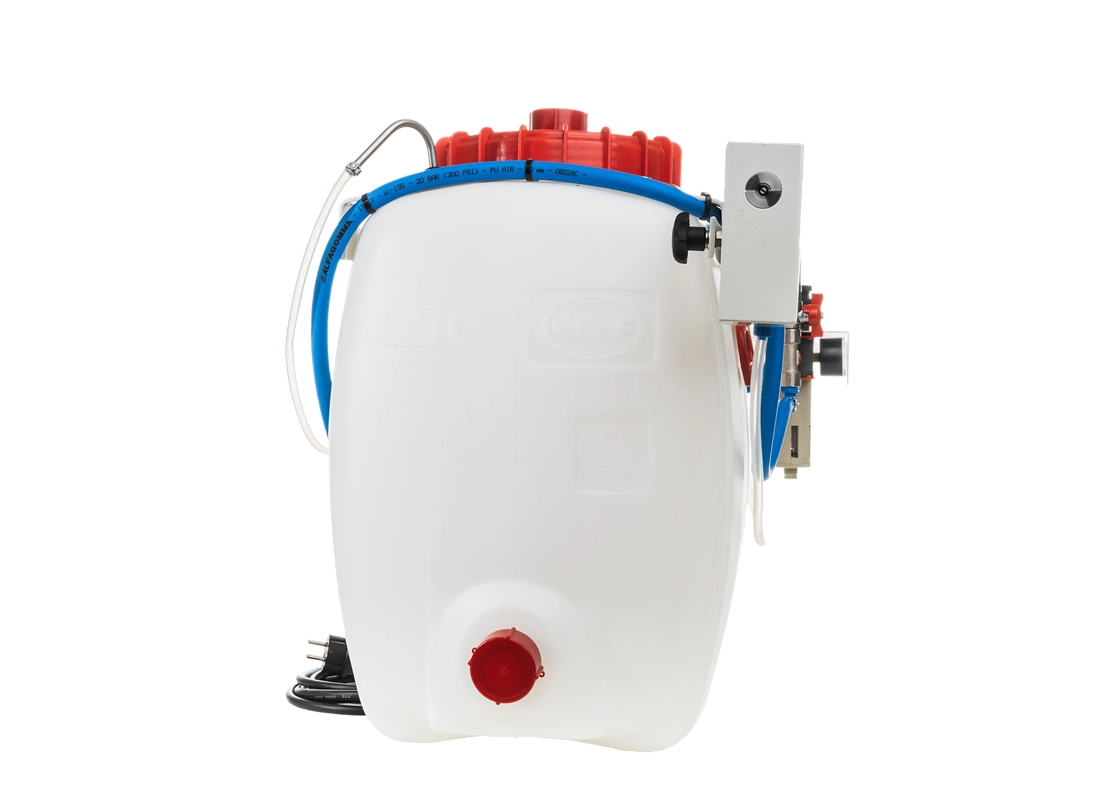

The PfalzTec AUTOMATIC DK W06 B60 is a powerful twin-head cold nebuliser for unattended applications in rooms up to 3,000 m³. With two W06 nozzles, a generous 60-litre medium container and automatic switch-off via a fill level sensor in the extraction fitting, the device achieves ranges of up to 100 m. Manual switching between one or two nozzles ensures flexible application options, while the stable stainless steel frame and robust construction guarantee a long service life.
