Automatic double-head cold nebuliser for large room volumes
AUTOMATIC DK W06 B20
Item no.
N80161445
AUTOMATIC DK W06 B20
Item no.
N80161445
Further information and Product information
- Uniform aerosol distribution
- High efficiency
- Durable and low-maintenance
| Specification | Value |
|---|---|
Room coverage | up to 1,500 m³ |
Nozzle type | 2 × W06 |
Droplet spectrum | Ø 8-18 µm |
Medium throughput (depending on dosing nozzle) | 3 bar: up to 10 l/h (dry fog) up to 24 l/h (medium fog) up to 48 l/h (wet fog) |
6 bar: up to 20 l/h (dry fog) up to 48 l/h (medium fog) up to 96 l/h (wet fog) | |
Reach | up to 90 m (3 bar) or up to 100 m (6 bar) |
Max. Compressed air flow rate | 400-1,600 l/min |
Max. Compressed air pressure | 8 bar |
Compressed air connection | Plug nipple NW 7.2 mm |
Centre container capacity | 20 l |
Switch off | automatically by means of a level sensor |
Manual switching | 1 nozzle - Off - 2 nozzles |
Degree of protection | IP45 |
Supply voltage | 230 V AC, 50 Hz |
Power consumption | approx. 200 W |
Electrical connection | 3 m mains cable with Schuko plug CEE 7/7 |
Dimensions (L×W×H) | 50 × 35 × 61 cm |
Weight (empty) | approx. 12.3 kg |
Housing | Powder-coated stainless steel, ergonomic carrying handle |
Miscellaneous Areas of application.
Get in touch with us for your individual project!

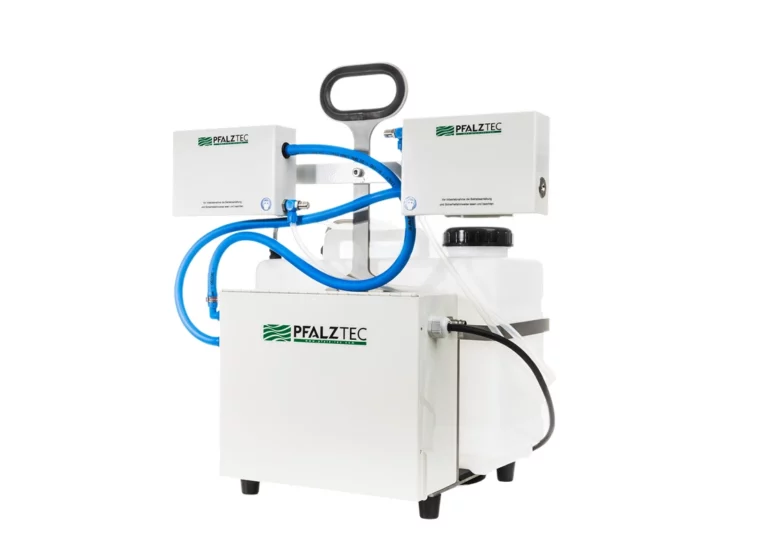

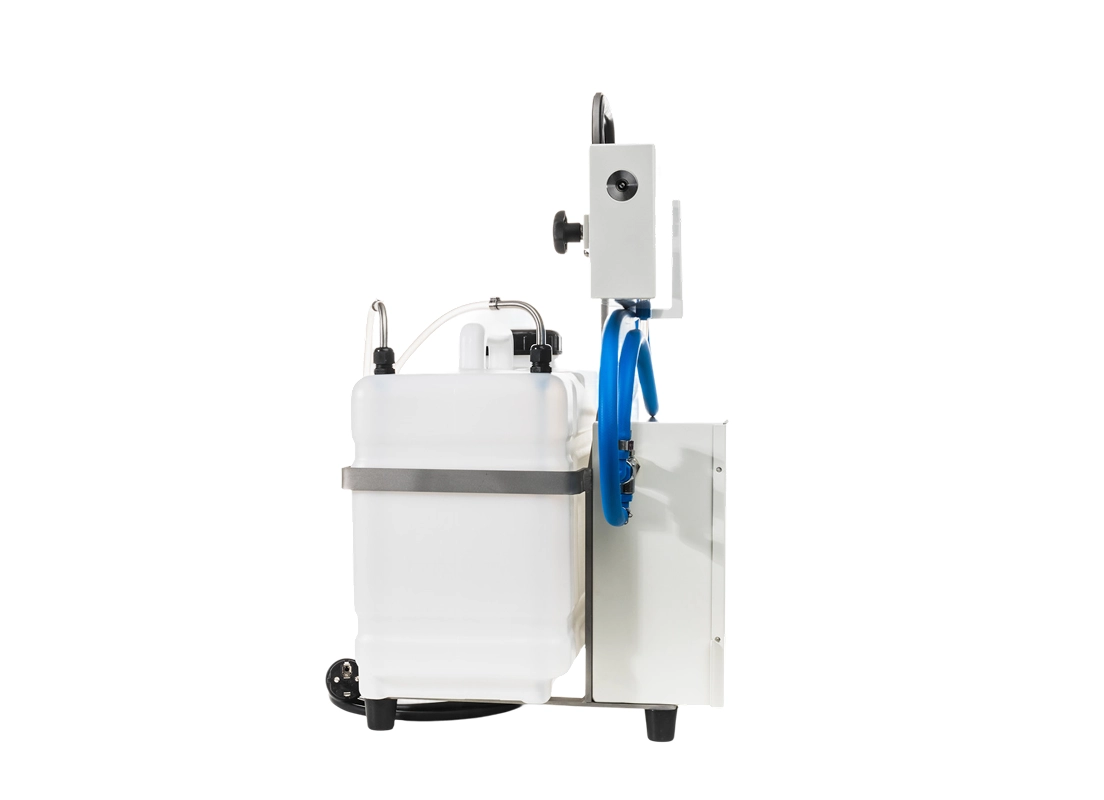

The PfalzTec AUTOMATIC DK W06 B20 is a powerful twin-head cold nebuliser for unattended applications in rooms up to 1,500 m³. Equipped with two W06 nozzles, a 20-litre medium container and automatic switch-off via a fill level sensor, the device achieves impressive ranges of up to 100 m. Manual switching between one or two nozzles ensures flexible customisation, while the robust stainless steel frame and high-quality workmanship guarantee reliable continuous operation.
