Double-headed cold nebuliser for medium room sizes
AUTOMATIC DK W03 B10
Item no.
N80171240
AUTOMATIC DK W03 B10
Item no.
N80171240
Further information and Product information
- Uniform aerosol distribution
- High efficiency
- Durable and low-maintenance
| Specification | Value |
|---|---|
Room coverage | up to 500 m³ |
Nozzle type | 2 × W03 |
Droplet spectrum | Ø 6-16 µm |
Medium throughput (depending on dosing nozzle) | 3 bar: |
6 bar: | |
Reach | up to 36 m (3 bar) or up to 46 m (6 bar) |
Max. Compressed air flow rate | 100-400 l/min |
Max. Compressed air pressure | 8 bar |
Compressed air connection | Plug nipple NW 7.2 mm |
Centre container capacity | 10 l |
Degree of protection | IP45 |
Supply voltage | 230V AC, 50Hz |
Power consumption | approx. 200 W |
Electrical connection | 3m mains cable with Schuko plug CEE 7/7 |
Manual switching | 1 nozzle - Off - 2 nozzles |
Dimensions (L×W×H) | 55 × 23 × 59 cm |
Weight (empty) | approx. 5.5 kg |
Housing | Powder-coated stainless steel, ergonomic carrying handle |
Miscellaneous Areas of application.
Get in touch with us for your individual project!

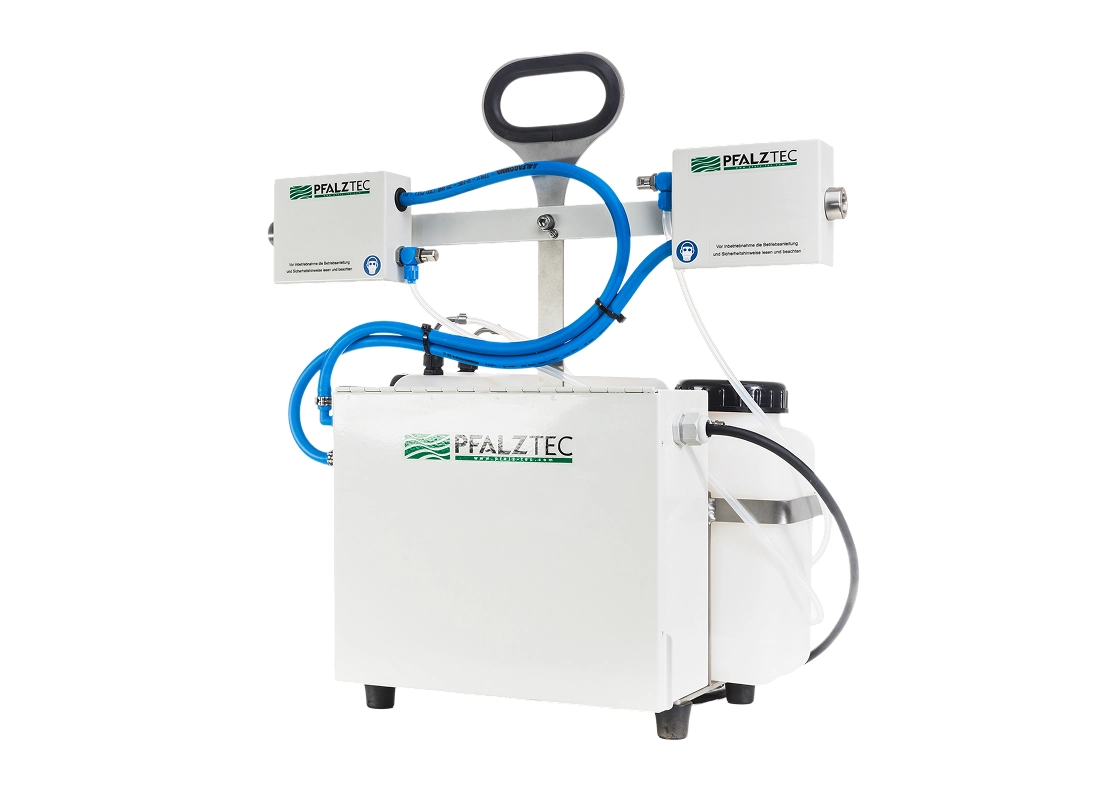

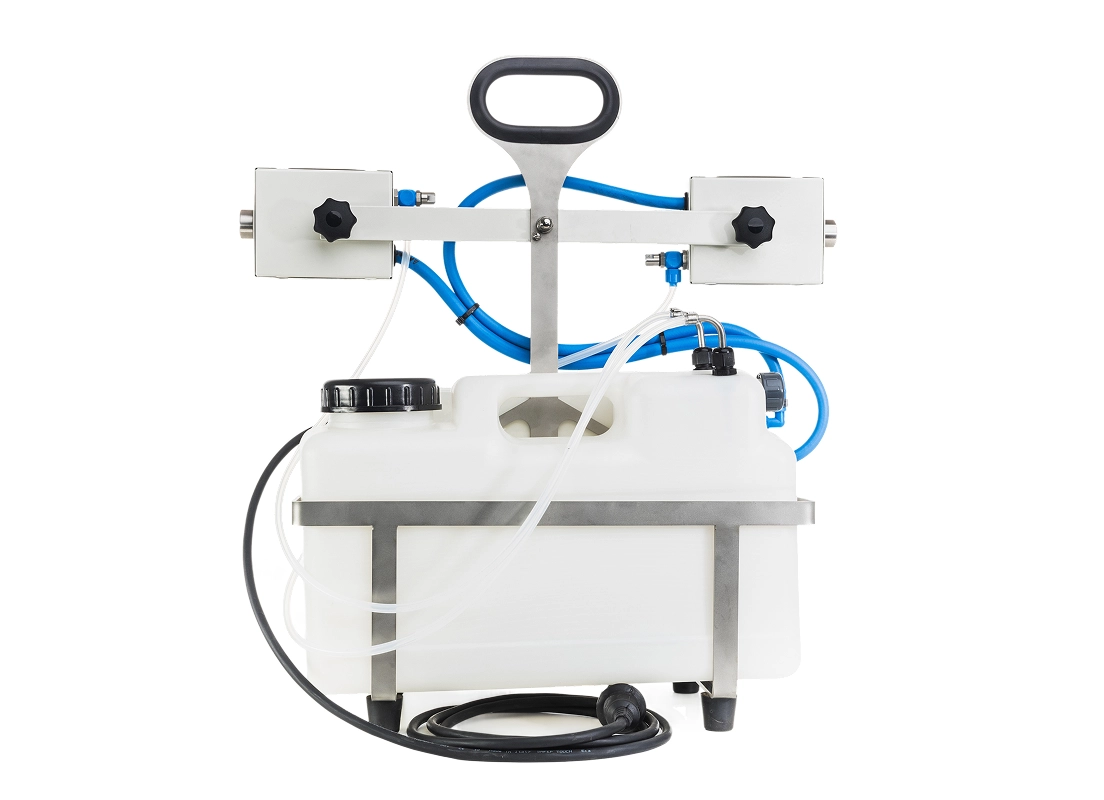

The PfalzTec PROFI DK W03 B10 is a compact twin-head cold nebuliser for professional applications in rooms up to 500 m³. With two W03 nozzles, a 10-litre medium container and a variable medium flow rate, the device achieves ranges of up to 46 m. Manual switching between one or two nozzles enables flexible adjustments, while the lightweight stainless steel frame with ergonomic carrying handle facilitates transport and ensures reliable handling.
